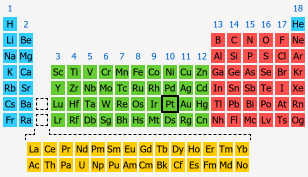

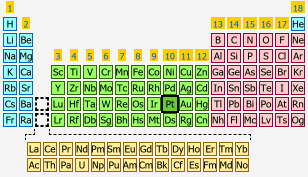

Platinum Navigation

Other Elements

By Name

By Symbol

By Number

Solutions manuals and the Numerari scientific calculator from KnowledgeDoor Learn more about our solutions
manuals Learn more about Numerari

Quantity

Platinum Quick Reference

Click button to see citations

Notes

Symbol

Pt

Atomic Number

78

Atomic Weight

Rounded

195.1

for regular calculations

Standard

195.084 ± 0.009

for precise calculations

Oxidation States

6

less common

5

less common

4

more common

2

more common with disagreement

0

less common

Pauling Electronegativity

2.28

Electron Configuration

Orbital Occupancy

[Xe] 4f14 5d9 6s1

[Xe] represents the closed-shell electron configuration of xenon

Orbital Filling Order

[Xe] 6s1 4f14 5d9

[Xe] represents the closed-shell electron configuration of xenon

Term Symbol

3D3

see expanded configuration ...

Ionization Energies

I  (1)

 8.9588 eV

II (2)

18.563 eV

Electron Affinity

2.12510 ± 0.00005 eV

17140.1 ± 0.4 cm-1

Density

liquid, 2073.15 K

18.745 g/ml

solid, 25 °C

21.500 g/cm3

Molar Volume

solid, 298 K, 1 atm

9.09 cm3/mol

Melting Point

1 atm

2041.3 K

ITS-90 first-quality, secondary reference point (freezing point)

Boiling Point

1 atm

4149 ± 20 K

reference stated that the uncertainty may be larger than indicated

Thermal Conductivity

solid

400 K

71.8 W/(m K)

300 K

71.6 W/(m K)

298.2 K

71.6 W/(m K)

273.2 K

71.7 W/(m K)

200 K

72.6 W/(m K)

see all 46 conductivities ...

Pyykkö Covalent Radius

single bond

123 pm

double bond

112 pm

triple bond

110 pm

Atomic Radius

139 pm

Enthalpy of Fusion

1 atm

19.7 kJ/mol

Enthalpy of Vaporization

1 atm

510.5 kJ/mol

Quantity

Platinum Atomic Structure

Notes

Ionization Energies

I  (1)

 8.9588 eV

II (2)

18.563 eV

Electron Affinity

2.12510 ± 0.00005 eV

17140.1 ± 0.4 cm-1

Electron Binding Energies

K    (1s)

78395 eV

LI   (2s)

13880 eV

LII  (2p1/2)

13273 eV

LIII (2p3/2)

11564 eV

see all 19 energies ...

Electron Configuration

Orbital Occupancy

[Xe] 4f14 5d9 6s1

[Xe] represents the closed-shell electron configuration of xenon

Orbital Filling Order

[Xe] 6s1 4f14 5d9

[Xe] represents the closed-shell electron configuration of xenon

Term Symbol

3D3

see expanded configuration ...

Clementi-Raimondi Effective Nuclear Charge

1s

Orbital Exponent

76.4940

ζ

Principle Quantum Number

1

n

Effective Nuclear Charge

76.4940

Zeff = ζ × n

2s

Orbital Exponent

28.8149

ζ

Principle Quantum Number

2

n

Effective Nuclear Charge

57.6298

Zeff = ζ × n

see all 14 effective nuclear charges ...

Screening Percentage

85.8%

Fluorescence Yields

ωK

0.959

ωL1

0.114

ωL2

0.344

ωL3

0.303

Coster-Kronig Yields

F12

0.075

F13

0.545

F23

0.126

Quantity

Platinum Physical Properties

Notes

Density

liquid, 2073.15 K

18.745 g/ml

solid, 25 °C

21.500 g/cm3

Molar Mass

Rounded

195.1 g/mol

for regular calculations

Standard

195.084 ± 0.009 g/mol

for precise calculations

Molar Volume

solid, 298 K, 1 atm

9.09 cm3/mol

Physical Form

silvery-gray metal

Linear Thermal Expansion Coefficient

25 °C

8.8×10-6 K-1

Speed of Sound

solid

room temperature, extensional wave

2800 m/s

473 K

2460 m/s

373 K

2570 m/s

298 K

2780 m/s

20 °C

longitudinal wave

3260 m/s

shear wave

1730 m/s

288 K to 293 K, annealed

2680 m/s

Specific Gravity

68 °F, water at 4 °C (39.2 °F)

21.45

Young's Modulus

172.4 GPa

Poisson's Ratio

0.397

Electrical Resistivity

solid

200 K

6.9169×10-8 Ohm m

273 K

9.82×10-8 Ohm m

300 K

10.871×10-8 Ohm m

400 K

14.712×10-8 Ohm m

see all 27 resistivities ...

Contact Potential

5.36 eV

Photoelectric Work Function

5.22 eV

Thermionic Work Function

5.32 eV

Mineralogical Hardness

3.50

Vickers Hardness

annealed at 1573 K for 3 hr, purity - 99.99%

293 K

549 MN/m2

673 K

500 MN/m2

see all 6 hardnesses ...

Reflectivity

surface polished electrolytically

0.450 μm

54.7%

0.550 μm

61.1%

0.650 μm

66.5%

see all 19 reflectivities ...

Isothermal Bulk Modulus

300 K

278.3 GPa

Isothermal Compressibility

300 K

0.00359 GPa-1

Gram Atomic Volume

9 cm3

Quantity

Platinum Atomic Interaction

Notes

Oxidation States

6

less common

5

less common

4

more common

2

more common with disagreement

0

less common

Pauling Electronegativity

2.28

Allred-Rochow Electronegativity

1.44

Configuration Energy

electron volt units

10.16 eV

Pauling units

 1.72

Allred Electronegativity

oxidation state: 2

2.28

Nagle Electronegativity

1.49

Pearson Absolute Electronegativity

5.6 eV

Smith Electronegativity

oxidation state: 4

2.35

oxidation state: 2

2.25

Chemical Hardness

3.5 eV

Cohesive Energy

per mole

564 kJ/mol

per atom

  5.84 eV/atom

Quantity

Platinum Thermodynamics

Notes

Melting Point

1 atm

2041.3 K

ITS-90 first-quality, secondary reference point (freezing point)

Boiling Point

1 atm

4149 ± 20 K

reference stated that the uncertainty may be larger than indicated

Thermal Conductivity

solid

400 K

71.8 W/(m K)

300 K

71.6 W/(m K)

298.2 K

71.6 W/(m K)

273.2 K

71.7 W/(m K)

200 K

72.6 W/(m K)

see all 46 conductivities ...

Critical Point

8450 K

Vapor Pressure

4149 K

1 atm

4146 K

1 bar

3580 K

1×10-1 bar

3155 K

1×10-2 bar

2041.3 K

1.896×10-7 bar

melting point

see all 19 pressures ...

Enthalpy of Fusion

1 atm

19.7 kJ/mol

Enthalpy of Vaporization

1 atm

510.5 kJ/mol

Isobaric Molar Heat Capacity

298.15 K, 1 bar

25.86 J/(mol K)

Isobaric Specific Heat Capacity

298.15 K, 1 bar

0.133 J/(g K)

Electronic Heat Capacity Coefficient

6.54 mJ/(mol K2)

Debye Temperature

Low Temperature Limit ( 0 K )

237 K

Room Temperature ( 298 K )

225 K

Quantity

Platinum Identification

Notes

CAS Number

7440-06-4

ICSC Number

powder

1393

RTECS Number

TP2160000

Quantity

Platinum Atomic Size

Notes

Atomic Radius

139 pm

Orbital Radius

122.1 pm

Pyykkö Covalent Radius

single bond

123 pm

double bond

112 pm

triple bond

110 pm

Cordero Covalent Radius

136 pm

Shannon-Prewitt Crystal Radius

ion charge: +2

coordination number: 4, square planer

74 pm

coordination number: 6

94 pm

ion charge: +4, coordination number: 6

76.5 pm

ion charge: +5, coordination number: 6

71 pm

Shannon-Prewitt Effective Ionic Radius

ion charge: +2

coordination number: 4, square planer

60 pm

coordination number: 6

80 pm

ion charge: +4, coordination number: 6

62.5 pm

ion charge: +5, coordination number: 6

57 pm

Batsanov Crystallographic Van Der Waals Radius

205 pm

Batsanov Equilibrium Van Der Waals Radius

237 pm

Bondi Van Der Waals Radius

1.7×102 pm to 1.8×102 pm

Slater Atomic-Ionic Radius

135 pm

Quantity

Platinum Crystal Structure

Notes

Nearest Neighbor Distance

300 K, 1 atm

277 pm

Atomic Concentration

300 K, 1 atm

6.62×1022 cm-3

Quantity

Platinum History

Notes

Discovery

date of discovery

pre 1700

discoverer

unknown

location of discovery

Central America

Origin of Element Name

origin

platina

origin description

color—Spanish for little silver

Origin of Element Symbol

symbol: Pt

origin

platinum

origin description

element name

U.S. Towns Named After Elements

Platinum, Alaska

Quantity

Platinum Abundances

Notes

Earth's Crust

5×10-3 ppm

Earth's Mantle

6.6 ppb

primitive mantle

Earth's Core

5.7 ppm

Bulk Earth

1.9 ppm

U.S. Coal

<0.001 ppm

estimated from USGS and literature data

Solar System

1.34

number of atoms for every 106 atoms of silicon

Sun

1.8 ± 0.3

base 10 log of the number of atoms for every 1012 atoms of hydrogen

Meteorites

1.68 ± 0.04

base 10 log of the number of atoms for every 1012 atoms of hydrogen

Quantity

Platinum Nomenclature

Notes

Element Names in Other Languages

French

platine

German

Platin

Italian

platino

Spanish

platino

Portuguese

platina

Anions or Anionic Substituent Groups

platinide

Cations or Cationic Substituent Groups

platinum (general)

Pt2+, platinum(2+)

Pt4+, platinum(4+)

Ligands

platinido

Heteroatomic Anion

platinate

'a' Term—Substitutive Nomenclature

platina

'y' Term—Chains and Rings Nomenclature

platiny

References    (Click the button next to a value above to see complete citation information for that entry)

Allred, A. L. "Electronegativity Values from Thermochemical Data." Journal of Inorganic and Nuclear Chemistry, volume 17, number 3-4, 1961, pp. 215–221. doi:10.1016/0022-1902(61)80142-5

Anders, Edward, and Nicolas Grevesse. "Abundances of the Elements: Meteoritic and Solar." Geochimica et Cosmochimica Acta, volume 53, number 1, 1989, pp. 197–214. doi:10.1016/0016-7037(89)90286-X

Andersen, T., H. K. Haugen, and H. Hotop. "Binding Energies in Atomic Negative Ions: III." Journal of Physical and Chemical Reference Data, volume 28, number 6, 1999, pp. 1511–1533.

Arblaster, J. W. "Vapour Pressure Equations for the Platinum Group Elements." Platinum Metals Review, volume 51, number 3, 2007, pp. 130–135. doi:10.1595/147106707X213830

Barsan, Michael E., editor. NIOSH Pocket Guide to Chemical Hazards. Cincinnati, Ohio: NIOSH Publications, 2007.

Batsanov, S. S. "Van der Waals Radii of Elements." Inorganic Materials, volume 37, number 9, 2001, pp. 871–885. See abstract

Bedford, R. E., G. Bonnier, H. Maas, and F. Pavese. "Recommended Values of Temperature on the International Temperature Scale of 1990 for a Selected Set of Secondary Reference Points." Metrologia, volume 33, number 2, 1996, pp. 133–154. doi:10.1088/0026-1394/33/2/3

Bondi, A. "Van der Waals Volumes and Radii." The Journal of Physical Chemistry, volume 68, number 3, 1964, pp. 441–451. doi:10.1021/j100785a001

Campbell, J. L. "Fluorescence Yields and Coster–Kronig Probabilities for the Atomic L Subshells. Part II: The L1 Subshell Revisited." Atomic Data and Nuclear Data Tables, volume 95, number 1, 2009, pp. 115–124. doi:10.1016/j.adt.2008.08.002

Campbell, J. L. "Fluorescence Yields and Coster–Kronig Probabilities for the Atomic L Subshells." Atomic Data and Nuclear Data Tables, volume 85, number 2, 2003, pp. 291–315. doi:10.1016/S0092-640X(03)00059-7

Cardarelli, François. Materials Handbook: A Concise Desktop Reference, 2nd edition. London: Springer–Verlag, 2008.

Clementi, E., D. L. Raimondi, and W. P. Reinhardt. "Atomic Screening Constants from SCF Functions. II. Atoms with 37 to 86 Electrons." Journal of Chemical Physics, volume 47, number 4, 1967, pp. 1300–1307. doi:10.1063/1.1712084

Cohen, E. Richard, David R. Lide, and George L. Trigg, editors. AlP Physics Desk Reference, 3rd edition. New York: Springer-Verlag New York, Inc., 2003.

Connelly, Neil G., Ture Damhus, Richard M. Hartshorn, and Alan T. Hutton. Nomenclature of Inorganic Chemistry: IUPAC Recommendations 2005. Cambridge: RSC Publishing, 2005.

Cordero, Beatriz, Verónica Gómez, Ana E. Platero-Prats, Marc Revés, Jorge Echeverría, Eduard Cremades, Flavia Barragán, and Santiago Alvarez. "Covalent Radii Revisited." Dalton Transactions, number 21, 2008, pp 2832–2838. doi:10.1039/b801115j

Corti, C. W. "Thermophysical Data on Platinum: Resistivity and Conductivity Values Recommended." Platinum Metals Review, volume 28, number 4, 1984, pp. 164–165.

de Podesta, Michael. Understanding the Properties of Matter, 2nd edition. London: Taylor & Francis, 2002.

Dronskowski, Richard. Computational Chemistry of Solid State Materials. Weinheim, Germany: WILEY-VCH Verlag GmbH & Co. KGaA, 2005.

Emsley, John. Nature's Building Blocks: An A-Z Guide to the Elements. Oxford: Oxford University Press, 2003.

Emsley, John. The Elements, 3rd edition. Oxford: Oxford University Press, 1998.

Firestone, Richard B. Table of Isotopes, 8th edition, volume 2. Edited by Virginia S. Shirley, with assistant editors Coral M. Baglin, S. Y. Frank Chu, and Jean Zipkin. New York: John Wiley & Sons, Inc., 1996.

Greenwood, N. N., and A. Earnshaw. Chemistry of the Elements, 2nd edition. Oxford: Butterworth-Heinemann, 1997.

Gwyn Williams. Electron Binding Energies. http://www.jlab.org/~gwyn/ebindene.html. Accessed on April 30, 2010.

Ho, C. Y., R. W. Powell, and P. E. Liley. "Thermal Conductivity of the Elements: A Comprehensive Review." Journal of Physical and Chemical Reference Data, volume 3, supplement 1, 1974, pp. I–1 to I–796.

Höhne, G. W. H., W. F. Hemminger, and H.-J. Flammersheim. Differential Scanning Calorimetry, 2nd edition. Berlin: Springer–Verlag, 2003.

Horvath, A. L. "Critical Temperature of Elements and the Periodic System." Journal of Chemical Education, volume 50, number 5, 1973, pp. 335–336. doi:10.1021/ed050p335

Hotop, H., and W. C. Lineberger. "Binding Energies in Atomic Negative Ions: II." Journal of Physical and Chemical Reference Data, volume 14, number 3, 1985, pp. 731–750.

Huheey, James E., Ellen A. Keiter, and Richard L Keiter. Inorganic Chemistry: Principles of Structure and Reactivity, 4th edition. New York: HarperCollins College Publishers, 1993.

International Labour Organization (ILO). International Chemical Safety Card for Platinum. http://www.ilo.org/legacy/english/protection/safework/cis/products/icsc/dtasht/_icsc13/icsc1393.htm. Accessed on May 4, 2010.

Jr., Elbert J. Little,, and Mark M. Jones. "A Complete Table of Electronegativities." Journal of Chemical Education, volume 37, number 5, 1960, pp. 231–233. doi:10.1021/ed037p231

Kittel, Charles. Introduction to Solid State Physics, 8th edition. Hoboken, NJ: John Wiley & Sons, Inc, 2005.

Liboff, Richard L. Introductory Quantum Mechanics, 3rd edition. Reading, MA: Addison Wesley Longman, Inc., 1998.

Lide, David R., editor. CRC Handbook of Chemistry and Physics, 88th edition. Boca Raton, Florida: Taylor & Francis Group, 2008.

Mann, Joseph B., Terry L. Meek, Eugene T. Knight, Joseph F. Capitani, and Leland C. Allen. "Configuration Energies of the d-Block Elements." Journal of the American Chemical Society, volume 122, number 21, 2000, pp. 5132–5137. doi:10.1021/ja9928677

Manuel, O., editor. Origin of Elements in the Solar System: Implications of Post-1957 Observations. New York: Kluwer Academic Publishers, 2000.

Martin, W. C. "Electronic Structure of the Elements." The European Physical Journal C — Particles and Fields, volume 15, number 1–4, 2000, pp. 78–79. doi:10.1007/BF02683401

McDonough, W. F. "Compositional Model for the Earth's Core." pp. 547–568 in The Mantle and Core. Edited by Richard W. Carlson. Oxford: Elsevier Ltd., 2005.

Mechtly, Eugene A. "Properties of Materials." pp. 4–1 to 4–33 in Reference Data For Engineers: Radio, Electronics, Computer, and Communications. By Mac E. Van Valkenburg, edited by Wendy M. Middleton. Woburn, MA: Butterworth-Heinemann, 2002. doi:10.1016/B978-075067291-7/50006-6

Miessler, Gary L., and Donald A. Tarr. Inorganic Chemistry, 3rd edition. Upper Saddle River, NJ: Pearson Prentice Hall, 2004.

Nagle, Jeffrey K. "Atomic Polarizability and Electronegativity." Journal of the American Chemical Society, volume 112, number 12, 1990, pp. 4741–4747. doi:10.1021/ja00168a019

National Institute for Occupational Safety and Health (NIOSH). International Chemical Safety Card for Platinum. http://www.cdc.gov/niosh/ipcsneng/neng1393.html. Accessed on May 4, 2010.

National Institute for Occupational Safety and Health (NIOSH). The Registry of Toxic Effects of Chemical Substances for Platinum. http://www.cdc.gov/niosh-rtecs/tp20f580.html. Accessed on May 5, 2010.

Nicholas, J. V., and D. R. White. "Temperature." pp. 8–41 in Measurement of the Thermodynamic Properties of Single Phases. Edited by A. R. H. Goodwin, W. A. Wakeham, and K. N. Marsh. Amsterdam: Elsevier Science, 2003.

Orem, W. H., and R. B. Finkelman. "Coal Formation and Geochemistry." pp. 191–222 in Sediments, Diagenesis, and Sedimentary Rocks. Edited by Fred T. Mackenzie. Oxford: Elsevier Ltd., 2005.

Oxtoby, David W., H. P. Gillis, and Alan Campion. Principles of Modern Chemistry, 6th edition. Belmont, CA: Thomson Brooks/Cole, 2008.

Palme, H., and H. Beer. "Meteorites and the Composition of the Solar Photosphere." pp. 204–206 in Landolt–Börnstein—Group VI: Astronomy and Astrophysics. Edited by H. H. Voigt. New York: Springer–Verlag, 1993. doi:10.1007/10057790_59

Palme, H., and Hugh St. C. O'Neill. "Cosmochemical Estimates of Mantle Composition." pp. 1–38 in The Mantle and Core. Edited by Richard W. Carlson. Oxford: Elsevier Ltd., 2005.

Pearson, Ralph G. "Absolute Electronegativity and Hardness: Application to Inorganic Chemistry." Inorganic Chemistry, volume 27, number 4, 1988, pp 734–740. doi:10.1021/ic00277a030

Pekka Pyykkö. Self-Consistent, Year-2009 Covalent Radii. http://www.chem.helsinki.fi/~pyykko/Radii09.pdf. Accessed on November 20, 2010.

Pyykkö, Pekka, and Michiko Atsumi. "Molecular Double-Bond Covalent Radii for Elements Li-E112." Chemistry - A European Journal, volume 15, number 46, 2009, pp. 12770–12779. doi:10.1002/chem.200901472

Pyykkö, Pekka, and Michiko Atsumi. "Molecular Single-Bond Covalent Radii for Elements 1-118." Chemistry - A European Journal, volume 15, number 1, 2009, pp. 186–197. doi:10.1002/chem.200800987

Pyykkö, Pekka, Sebastian Riedel, and Michael Patzschke. "Triple-Bond Covalent Radii." Chemistry - A European Journal, volume 11, number 12, 2005, pp. 3511–3520. doi:10.1002/chem.200401299

Ringnes, Vivi. "Origin of the Names of Chemical Elements." Journal of Chemical Education, volume 66, number 9, 1989, pp. 731–738. doi:10.1021/ed066p731

Samsonov, G. V., editor. Handbook of the Physicochemical Properties of the Elements. New York: Plenum Publishing Corporation, 1968.

Sansonetti, J. E., and W. C. Martin. "Handbook of Basic Atomic Spectroscopic Data." Journal Of Physical And Chemical Reference Data, volume 34, number 4, 2005, pp. 1559–2259. doi:10.1063/1.1800011

Shannon, R. D. "Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides." Acta Crystallographica Section A, volume 32, number 5, 1976, pp. 751–767. doi:10.1107/S0567739476001551

Silbey, Robert J., Robert A. Alberty, and Moungi G. Bawendi. Physical Chemistry, 4th edition. Hoboken, NJ: John Wiley & Sons, Inc., 2005.

Singman, Charles N. "Atomic Volume and Allotropy of the Elements." Journal of Chemical Education, volume 61, number 2, 1984, pp. 137–142. doi:10.1021/ed061p137

Slater, J. C. "Atomic Radii in Crystals." The Journal of Chemical Physics, volume 41, number 10, 1964, pp. 3199–3204. doi:10.1063/1.1725697

Smith, Derek W. "Electronegativity in Two Dimensions: Reassessment and Resolution of the Pearson-Pauling Paradox." Journal of Chemical Education, volume 67, number 11, 1990, pp. 911–914. doi:10.1021/ed067p911

Smith, Derek W. Inorganic Substances: A Prelude to the Study of Descriptive Inorganic Chemistry. Cambridge: Cambridge University Press, 1990.

Stewart, G. R. "Measurement of low-temperature specific heat." Review of Scientific Instruments, volume 54, number 1, 1983, pp. 1–11. doi:10.1063/1.1137207

Stewart, G. R. "Measurement of Low-Temperature Specific Heat." Review of Scientific Instruments, volume 54, number 1, 1983, pp. 1–11. doi:10.1063/1.1137207

Tari, A. The Specific Heat of Matter at Low Temperatures. London: Imperial College Press, 2003.

Vainshtein, Boris K., Vladimir M. Fridkin, and Vladimir L. Indenbom. Structure of Crystals, 2nd edition. Modern Crystallography 2. Edited by Boris K. Vainshtein, A. A. Chernov, and L. A. Shuvalov. Berlin: Springer-Verlag, 1995.

Voigt, H. H., editor. Landolt–Börnstein—Group VI Astronomy and Astrophysics. Berlin: Springer–Verlag, 1993.

Waber, J. T., and Don T. Cromer. "Orbital Radii of Atoms and Ions." Journal of Chemical Physics, volume 42, number 12, 1965, pp. 4116–4123. doi:10.1063/1.1695904

Wagman, Donald D., William H. Evans, Vivian B. Parker, Richard H. Schumm, Iva Halow, Sylvia M. Bailey, Kenneth L. Churney, and Ralph L. Nuttall. "Thermal Conductivity of the Elements: A Comprehensive Review." Journal of Physical and Chemical Reference Data, volume 11, supplement 2, 1982, pp. 2–1 to 2–392.

Waldron, Kimberley A., Erin M. Fehringer, Amy E. Streeb, Jennifer E. Trosky, and Joshua J. Pearson. "Screening Percentages Based on Slater Effective Nuclear Charge as a Versatile Tool for Teaching Periodic Trends." Journal of Chemical Education, volume 78, number 5, 2001, pp. 635–639. doi:10.1021/ed078p635

Weeks, Mary Elvira, and Henry M. Leicester. Discovery of the Elements, 7th edition. Easton, PA: Journal of Chemical Education, 1968.

Wieser, Michael E., and Tyler B. Coplen. "Atomic weights of the elements 2009 (IUPAC Technical Report)." Pure and Applied Chemistry, volume 83, number 2, 2011, pp. 359–396. doi:10.1351/PAC-REP-10-09-14

Yaws, Carl L. "Liquid Density of the Elements." Chemical Engineering, volume 114, number 12, 2007, pp. 44–46.

Yaws, Carl L. The Yaws Handbook of Physical Properties for Hydrocarbons and Chemicals. Houston, TX: Gulf Publishing Company, 2005.
